Product Description

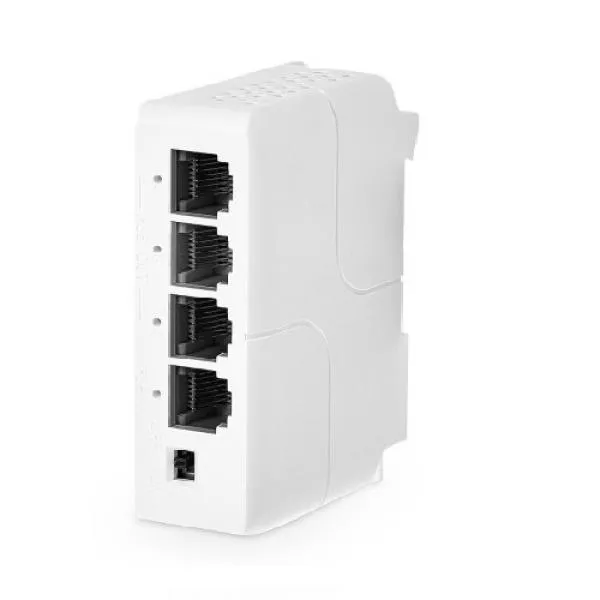

• PoE extender: Includes 1 PoE-in 3 PoE out ports, 10/100 Mbps rate. Powered by PoE network, no AC power required

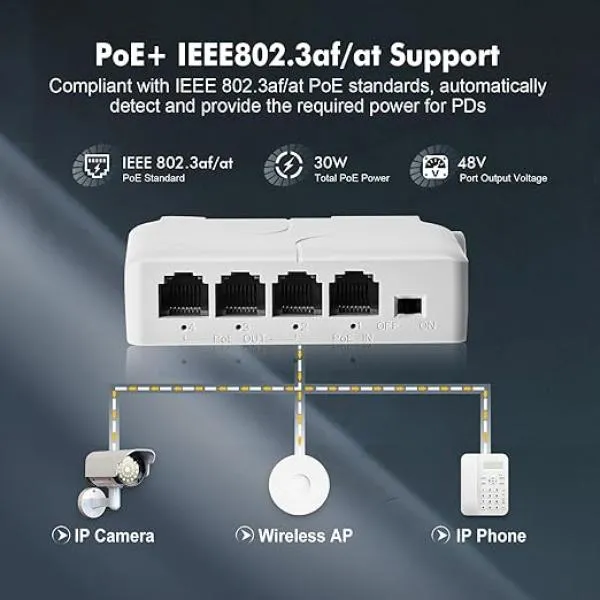

• IEEE 802.3 af/at: Supports standard PoE, input max 30W, output max 24W, average 8W per port. PoE Voltage 44-57 VDC PoE Pin: Input: 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-); Output: 1/2 (+), 3/6 (-)

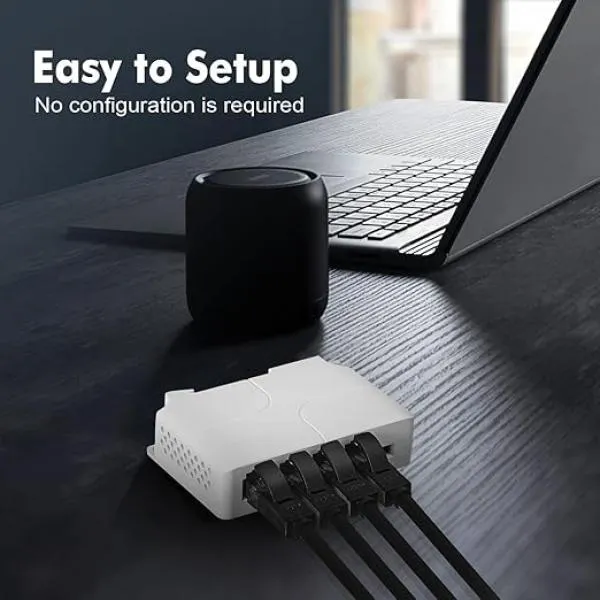

• Plug & Play: Supports power detection automatically detect devices, just plug in the Ethernet cable,
• connect directly to the device, LED indicator shows the port status, without configuration. *Please note that does not support 24V passive PoE *
• Easy installation: supports wall mount and DIN rail bracket, smaller size, space-saving, suitable for many positions

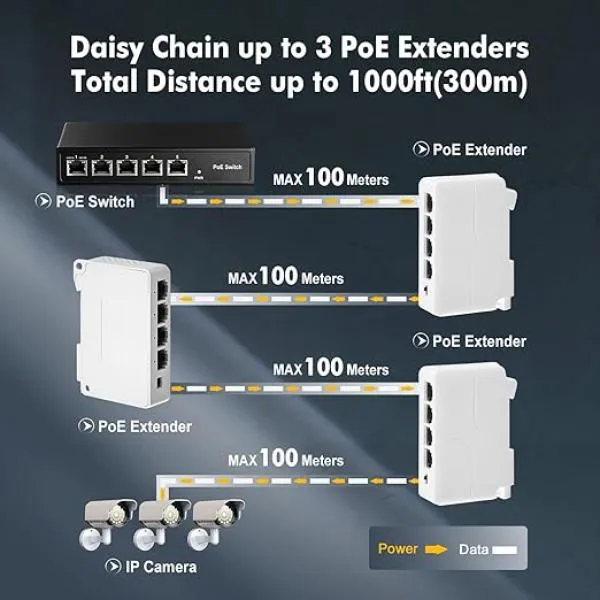

• Widely Used Support 3-stage cascading, can connect Poe AP, camera, phone and other POE devices, extends POE coverage at low cost.
• PoE Passthrough Extender : Include 1 PoE In 3 PoE Out Ports, 10/100Mbps rate. Powered by PoE network, no AC power supply required.
• Plug & Play: Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*
• IEEE 802.3 af/at : Support standard PoE, Input Max 30W, Output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc. PoE pin: Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output: 1/2 (+), 3/6 (-)
• Easy Install : Support wall mount and din rail mount, smaller size save space, suitable for many positions
• Widely Used: Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost
